Criticare nGenuity Patient Monitor

Criticare nGenuity Patient Monitor

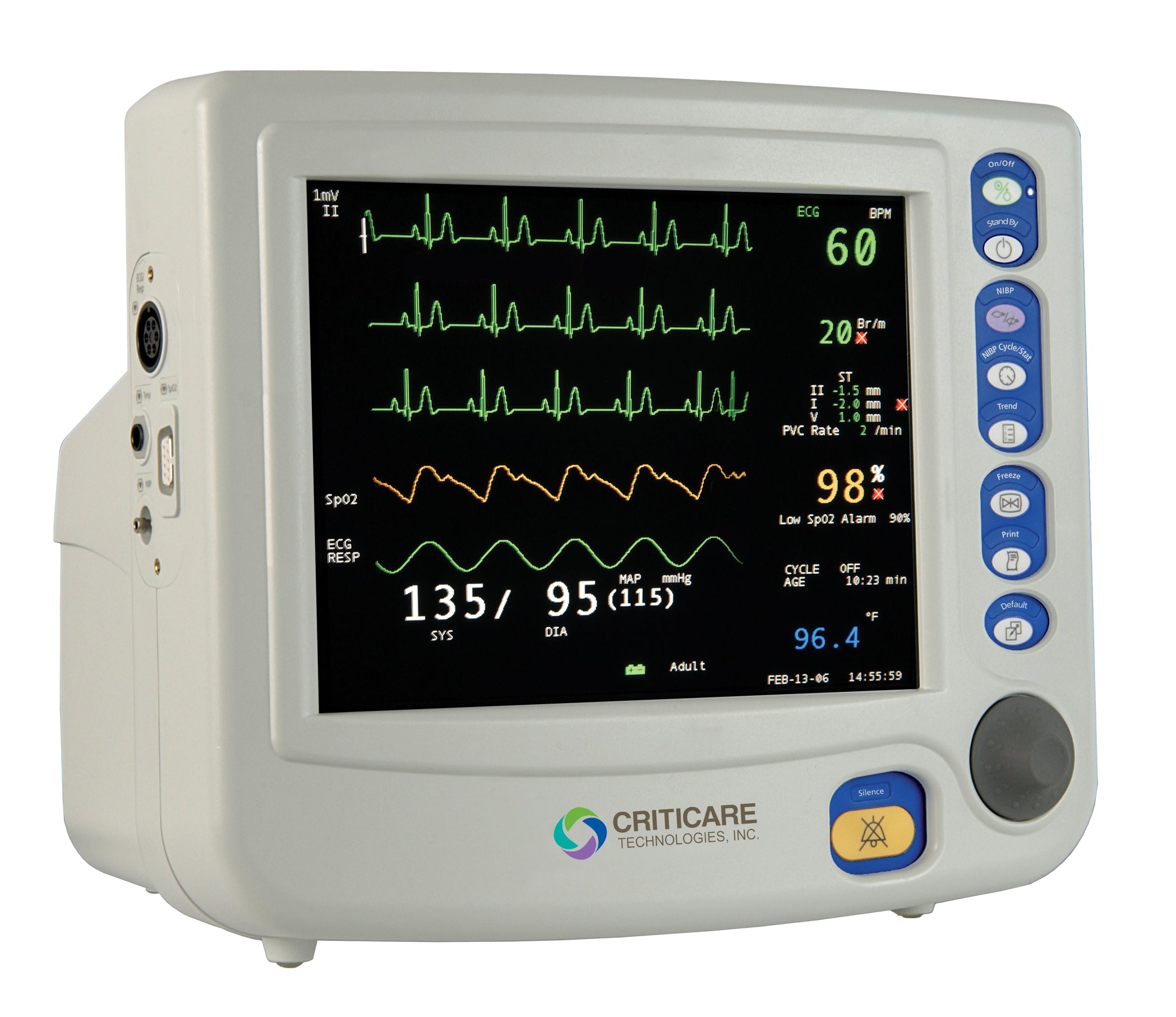

Criticare’s nGenuity 8100E Series Patient Monitor is the ideal solution for monitoring conscious sedation or post-procedure recovery. The system is extremely simple to use and easy to read from across the room, with bright and large color display and numeric readings. With a user-configurable display, clinicians are able to quickly and easily access results that they need.

Includes a 2-year parts and labor warranty.

Standard Features:

• ECG, ComfortCuff NIBP, DOX SpO2, Heart Rate, Temperature, Respiration, and Nurse Call interface connection
• Mini-Trends display of condensed tabular vital signs data to show recent monitoring activity
• Quick and easy mounting to walls and rollstands
• Compatible with common Electronic Medical Records (EMR) systems for both small and large offices
• 10” TFT display
• Simplified menus and dedicated function keys

Optional Features:

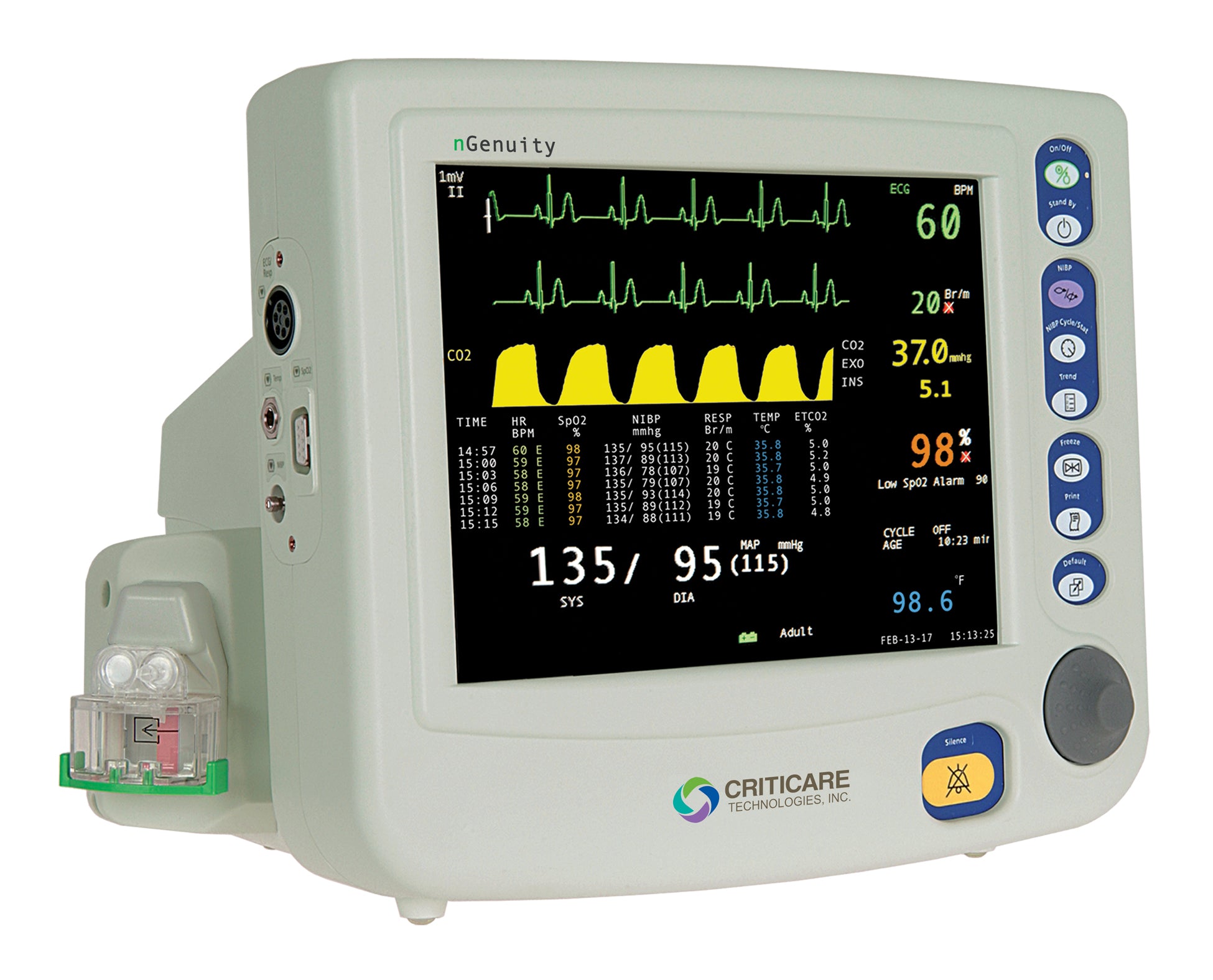

• End-tidal and inspired CO2, arrhythmia and ST analysis and integrated printer
• CO2 monitoring includes CSI’s patented water trap design with full occlusion clearing

Specifications:

ECG:

• Number of Leads: 3-or 5 Lead
• Lead View: User-selectable; I, II, III, aVR, aVL, aVF, V (5-Lead); II, II or III (3-Lead)
• Gain Selection: x0.5, x1, x2, and x4
• Frequency Response:
  • Diagnostic: 0.05 to 100 Hz (-3dB)
  • Monitor: 0.5 to 40 Hz (-3dB)
  • ST: 0.05 to 40 Hz (-3dB)
  • Electrosurgery Protection: Yes
  • Defibrillator Protection: Yes
  • Pacer Detection/Rejection: Yes
  • ST Accuracy: ±0.2 mm or ±5% of reading, whichever is greater, over heart range of 30 to 120 bpm
  • ST Range: -6.0 to 6.0 mm

NIBP:

• Technique: Oscillometric measure upon inflation
• Inflation Range:
  • Adult/Pediatric: 0 to 300 mmHg
  • Neonate: 0 to 150 mmHg
  • Measurement Cycle: < 40 sec. typical; standard adult cuff
  • Auto. Measurement Cycles: 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hour intervals
  • Max. Cuff Pressure:
    • Adult/Pediatric: 300 mmHg
    • Neonate: 150 mmHg
    • Resolution: 1 mmHg
    • Transducer Accuracy: ±2 mmHg or ±2% of reading, whichever is greater, over full range
    • STAT Mode: 5 min of consecutive readings
    • Clinical Accuracy: Complies with AAMI

Pulse Oximetry:

• Range: 1% to 99%
• Resolution: 1%
• Accuracy: 70% to 99% range: ±2%; 50% to 69% range: ±3%; < 50%: unspecified
• Method: Dual wavelength LED

Heart Rate:

• Source: User selectable – Smart, ECG, Pleth, NIBP
• Range: 20 to 300 bpm (ECG, Pleth); 30 to 240 bpm (NIBP)
• Accuracy: ±1 bpm or ±1% (ECG) whichever is greater

Temperature:

• Channels: 1
• Probe: YSI-400 and YSI-700 Series
• Range, Accuracy: 68° to 113°F (20° to 45°C): ±0.1°C
• Display Resolution: ±0.1°

Respiration:

• Rate: 6 to 150 bpm (ECG); 2 to 120 (CO2)
• Resolution: 1 breath/min
• Accuracy: ±1 breath/min
• Source: User selectable: Smart, CO2, ECG-TTI

Capnography (CO2):

• Units: mmHg, %; kPa; Torr; Percent
• Method: Non-dispersive infrared; auto calibrating
• N2O Compensation: Manual (On/Off, user selectable
• Range: 0 to 99 mmHg; 0 to 12.5%; 0 to 12.5 kPa; 0 to 99 Torr)
• Resolution: 1 mmHg; 0.1%; 0.1 kPa; 1 Torr flow
  • Sample Rate: 200 ml/min
  • Accuracy: ±2 mmHg; ±0.3 vol. %; ±0.3 kPa; or ±2 Torr at 200ml/min and respiratory rate of ≤ 120 Br/min
  • Rise Time: 170 ms (10 to 90%) at 200 ml/min

Alarms:

• Indication: Audible; Visual
• Silence: Yes; 2 minutes or permanent

Trends:

• Memory: 24 hours at 30 second intervals with a NIBP reading every three minutes
• Display: Tabular, Graphical

Interface & Display:

• 9; membrane activated
• Rotary Knob: Push and rotate; 24 steps/turn
• Screen: 10.4” active color touch screen
• Resolution:
  • Internal Display: 640 X 480 pixels
  • External VGA Display: 640 X 480 pixels
  • Waveform: 6 maximum
  • Waveform Types: ECG leads I, II, III, aVR, aVL, AVF, V; CO2; Respiration; Pleth; ST Histograms
  • Sweep Speed: 6.25, 12.5, 25, or 50 mm/sec
  • Languages: English, Czech, French, German, Italian, Portuguese, Polish, Russian, Spanish, Turkish
  • Control Keys: 10; membrane-activated
  • Rotary Knob: Push and rotate; 2 steps/turn

System Outputs:

• COM Ports: RS232 compatible, DB9 (Com 1)
• Nurse Call: Contact switch; 3.5 mm stereo phone jack, 14 mm
• Defib/Sync: BNC connector
• Video Port: High density D-sub 15-pin
  serial VGA compatible

Printer (Optional):

• Type: Thermal line printer
• 12.5, 25 or 50 mm/sec

Physical Properties:

• Weight: 14 lbs; 6.4 kg
• Size: 11 in (H) x 13 in (W) x 10.3 (D); 28 cm
  (H) x 33 cm (W) x 26.2 cm (D)

Power Requirements:

• Voltage: 100 to 240 VAC; 50/60 Hz
• Power Consumption: 35 Watts, typical
• Battery: 1 sealed lead acid
• Power consumption: 35 W, typical
• Battery Life: 3 hours, typical (2.5 hours w/ CO2 hours)
• Power Consumption: 35 W, typical
• Recharge Time: 4.5 hours, typical

Environmental:

• Operating Temperature: 59° to 95°F (15° to 35°C)
• Storage Temperature: 23° to 122°F (-5° to 50°C)
• Operating Humidity: 15% to 90%, noncondensing

Classification:

• Medical Device: Class II Equipment (IIb EU)
• Electrical Protection: Class I Equipment
• Degree of Protection: Type CF, Defibrillator-proof
• Protection Against Ingress: IPX1
