Description

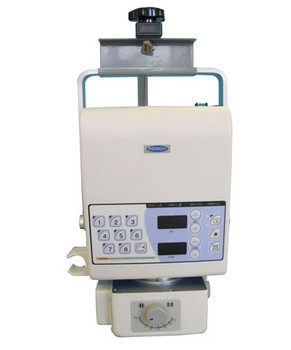

Source-Ray Power-Max 1260 Portable X-Ray System
The Source-Ray PowerMax 1260 Portable X-Ray System is a lightweight, high powered unit. It provides maximum power, system reliability and low maintenance, and state of the art technology. The PowerMax 1260 deliveres maximum mR/mAs, producing 3kW of power across the entire kV range. With its consistent 3kW output, this unit provides hospital quality imaging and offers an upgrade options for clinical sites transitioning to Digital Imaging. this state of the art portable x-ray system is suitable for use in hospitals, orthopedic practices, urgent care facilities, home healthcare, correctional facilities, medical examiner offices, nursing homes, sports medicine, and military field deployable applications.
Features:
Generator:
High frequency resonant inverter
Power - 3.0 kW across full range
Input Voltage: 110 - 230VAC, 50/60hZ
kVp Range: 40 - 120 kVp, adjustable in 1 kV increments - closed loop regulation, power factor correction
mA Range - Adjustable, 15 mA -60 mA - closed loop regulation
mAs Range - 0.125 - 200
Exposure Time - 0.01 - 3.3 seconds
Indicators - Digital display of kVp, mAs and Exposure Time X-Ray, Ready, mA Station, and Fault indicators
Exposure Switch
Detachable two-position
X-Ray Tube:
Stationary Anode 130 kVp
Target Material - Tungsten
Anode Capacity - 45,000 HU Storage
Focal Spot - 1.2 mm
Target Angle - 15 Degrees
Collimator:
Collimare CP-100-24-C
Laser Crosshairs - Center Locator
Tape Measure - SID Measurement
Inclinometer - Angle Measurement
Travel Stand
Min. F/S to Floor - 13" / 33 cm
Max. F/S to Floor - 78" / 198 cm
Hor. Ext. of F/S - 21" / 53 cm
Hor. Rotation - 200 Degrees
Tube Rotation - 270 Degrees
System Weight - 110 lbs. / 50 kG
